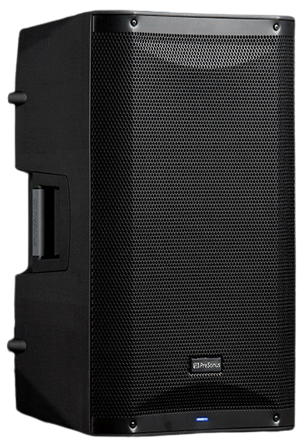

Compact and lightweight, AIR12 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car!

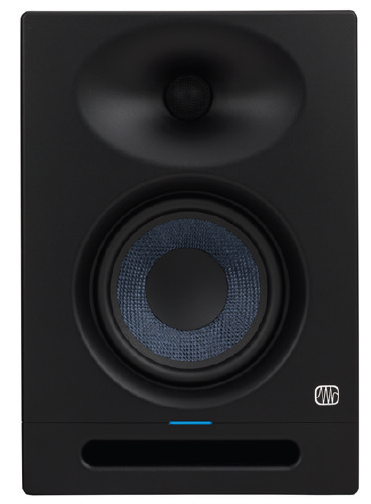

The Eris Studio 5 is a substantial update that builds on the reputation of its predecessors by offering deep lows and a wider, more controlled sweet spot so you’ll hear every transient, detail, and breath in your recordings.

Capture your creativity with the Quantum ES 4 – the recording interface for self-made musicians and audio creators.

The new BLUETUBE DP two channel microphone/instrument preamplifier with Dual Path technology delivers the best of both worlds offering a solid state preamplifier stage and a tube preamplifier stage in each channel. This new Dual Path feature delivers the most flexible preamplifier in its price range by delivering both fat warm tube tone or invisible solid state transparency. The BLUETUBE DP replaces the original award-winning BLUETUBE as PreSonus' most affordable two-channel microphone/instrument preamplifier.

Each channel of the BLUETUBE DP includes a -20dB pad, polarity reverse, 80Hz filter, and +48v phantom power. Front panel controls include solid state GAIN control and switchable on/off TUBE DRIVE. When the TUBE DRIVE is clicked off, the tube preamplifier stage is bypassed delivering ultra-quiet and transparent preamplification. The front panel also includes illuminated analog VU meters for each channel for easy visual monitoring.

The BLUETUBE DP's inputs are professional-quality Neutrik Combo connectors for inputting both XLR and 1/4" TS sources. Outputs include both XLR and TS jacks allowing for ultimate flexibility.

The PreSonus BLUETUBE Dual Path is great for enhancing all types of microphones including condensors, dynamics and ribbons, as well as instruments including keyboards, acoustic and electric guitars and bass. The BLUETUBE DP is the perfect front-end preamplifier for any project studio delivering a wide range of sounds and tonality all at an amazingly affordable price.

FEATURES
Stereo Dual Path Mic/Instrument Preamp Using 12AX7 Tube
High Headroom, Class A Gain Stage
XLR and ¼ High-Z Neutrik® Input Combo Connectors
Balanced XLR and ¼ TS Neutrik® Output Connectors
20dB Pad/ Polarity Reversal/ 80Hz Filter on Each Channel
Two Illuminated Analog VU Meters
Great as a DI for Bass and Guitar

Input

Connector Type
Neutrik™ Combo

XLR Impedance
1.3K Ohms

Hi-Z, 1/4"
1 Meg Ohms


Output

Connector Type
XLR and 1/4" TS

Impedance 51 Ohms

Panel Controls

Gain
0dB to +54dB

Tube Drive
0% to 100%

Phase Reversal

-20dB Pad

Phantom Power

Performance


THD  Noise (Unweighted) Solid State
< 0.005%

THD  Noise (Unweighted) Tube stage 0.01% to 30%
Signal To Noise
>95dB

Power Supply Rejection
>98dB

Meters

Analog VU
-2odBu to +6dBu

Clip Indicator +22dBu

Physical

Weight
4lbs

Dimensions
8" x 5" x 1.75"

Mounting
Universal rack tray insert

Power Supply

Type
Linear

Input
16VAC / 1000mA

Power 16 Watts

Transformer
External
