Powerful sounds and a sophisticated appearance!
The new StompLab series - shattering expectations for compact multi-effect units

Features

• A total of 100 preset programs are categorized into styles such as rock, blues, metal, and pop

• Easy to use interface; even novice users can instantly access the sounds they want!

• StompLab IG provides 103 types of modeling effects, StompLab IIG provides 104 types, StompLab IB provides 60 types, and StompLab IIB provides 61 types

• Each effect model boasts a sound engine that has been distilled from the worldwide best-selling VT+ series of modeling amps as well as the ToneLab series of multi-effect units.

• Edit and save 20 of your own user programs

• Up to 8 effect models can be used simultaneously

• Sophisticated appearance that was unimaginable for older effect units.

• The StompLab IIG and IIB provide an expression pedal that lets you control a variety of effect parameters including wah and volume

• Two-way power; works on batteries or on the AC adapter (separately sold)

• Built-in auto chromatic tuner with bypass and mute functions

The StompLab series of effect pedals are impressive new contenders that pack powerful sounds into compact and sophisticated looking metal bodies. Sound variations are categorized by style, such as rock, blues, and ballad, making it easy for even novice users to recall the desired sound. In addition to the StompLab IGs dedicated guitar modeling and the StompLab IB dedicated bass modeling, the lineup also includes the StompLab IIG and IIB which provide an expression pedal. With high-quality looks, plus its high quality sound, the StompLab series will be a great companion for the guitarist or bassist for years to come.

First check out the sounds!
Multi-effects units contain an incredibly diverse array of sounds that range from distorted to clean, and the sheer number of these sounds can be staggering. Although having a large number of sounds is a great advantage, it can also overwhelm the novice user, causing difficulty or confusion. The StompLab series is designed to be easily usable, even by novice players. Since each program is named with a musical style, such as rock, blues, or metal. Youll be able to find the perfect sound without being concerned with specific effect names. The musical styles are categorized into ten types, and cover everything from straight-ahead traditional styles to quirky, unusual sounds. There are ten variations for each category, so you're sure to find sounds you like.

Create your own original sounds!
Simply playing the preset sounds is a lot of fun, but you'll definitely want to create some of your own original sounds as well. The StompLab IG contains 103 types of modeling effects, the StompLab IIG has 104, the StompLab IB has 60, and the StompLab IIB has 61. These effects are categorized as pedal, amp, drive, cabinet, modulation, delay, and reverb effects. When noise reduction is included, you can use up to 8 of them simultaneously. Each effect type provides multiple parameters that you can deeply edit to create your perfect sound. Since the sound engine is equivalent to those featured on the worldwide best-selling VT+ series of modeling amps and the ToneLab series of multi-effect units, you need no further guarantee of quality. Sounds you create can be saved as 20 user programs.

It looks great!
The StompLab series was designed with great care, not only for its sounds, but also for its superb aesthetic. You'll never get tired of the cool metallic exterior. The pedal design is reminiscent of the vintage VOX wah pedals, which is sure to boost inspiration. One of the attractions of the StompLab series is the high-quality appearance, which is unheard of among other compact multi-effect units. It sounds excellent, it looks great and its compact enough to fit into a gig bag, so you can take it along with you anywhere your music takes you, quickly and easily.

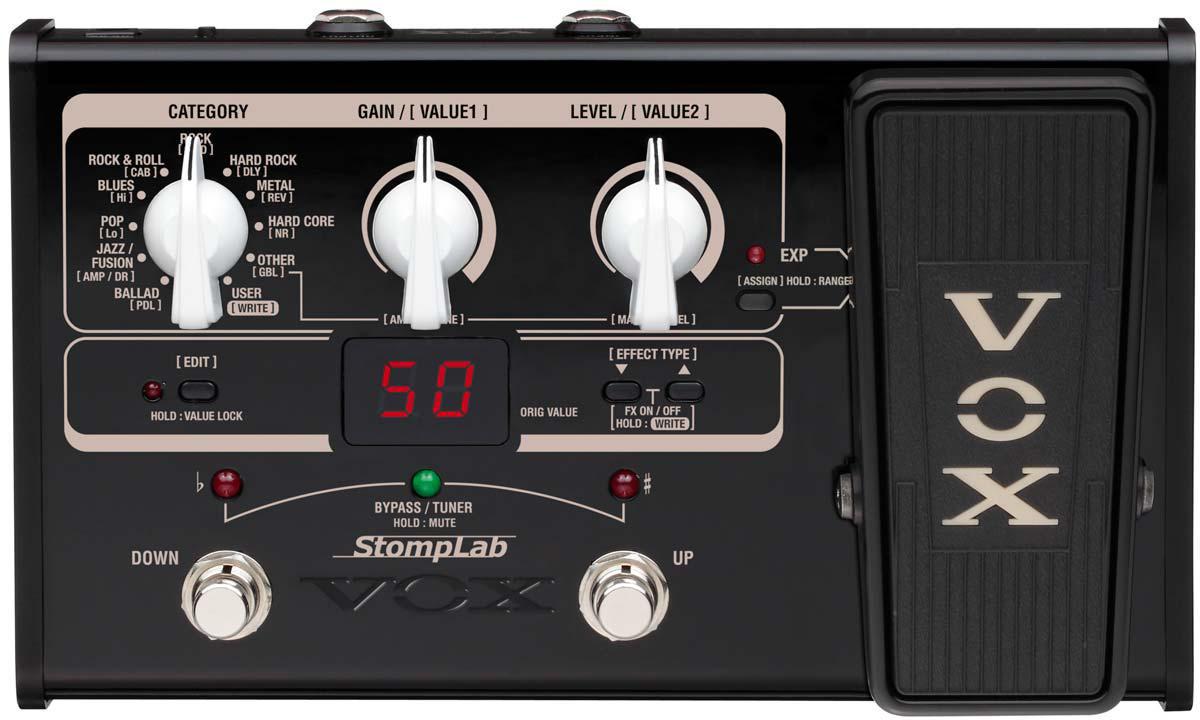

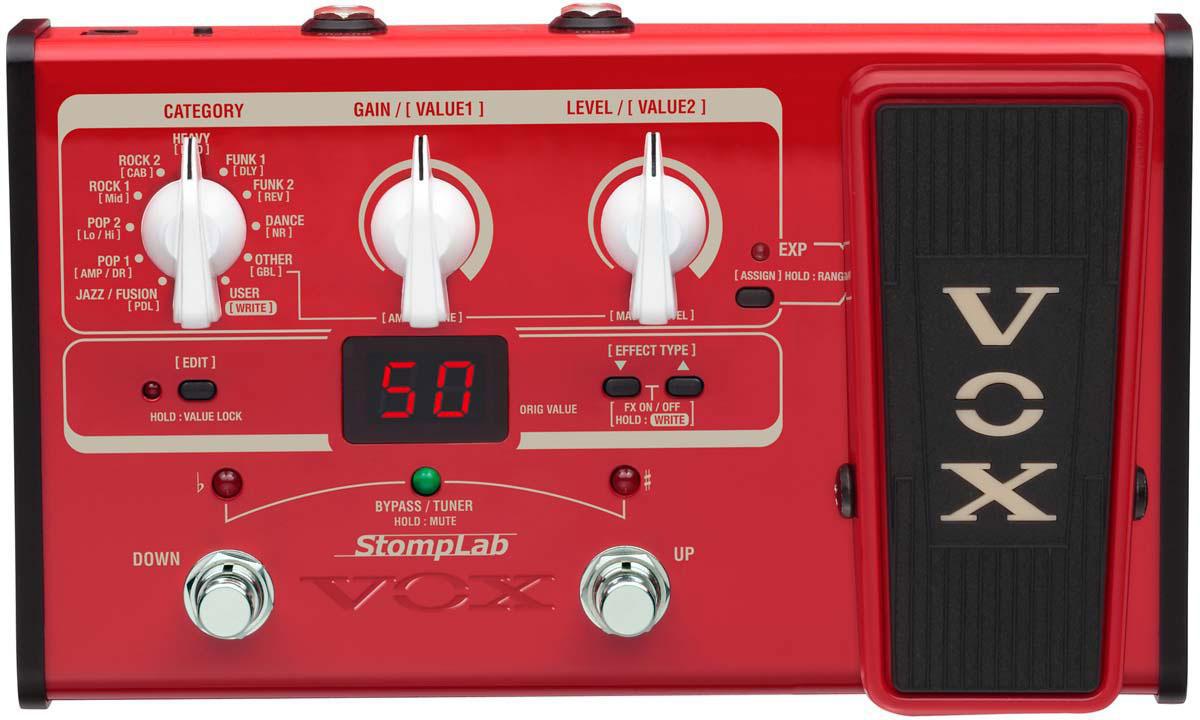

Use the expression pedal for realtime control!
The StompLab IIG and IIB are equipped with an expression pedal that can be used to control wah and volume, and also the parameters of each effect. You'll be free to create unique original sounds that you've never heard before.

Packed with convenient functions including a tuner!
The StompLab series has a built-in chromatic tuner, so you won't need to provide one separately. The three-LED indicator makes tuning easy. For convenience on stage, there's a mute function that lets you tune without being heard by others. Headphones can also be connected, so you'll be able to play at home late into the night without disturbing anyone. Battery operation makes these units easily portable, letting you enjoy serious sound from your guitar or bass wherever you go.

VOX StompLab Specificaitons

Effect Type -StompLab IG/IIG

Pedal (8):COMP, FIX WAH or WAH?*IG?FIX WAH, IIG?WAH?, AUTO WAH, BRN OCTAVE, ACOUSTIC, U-VIBE, TONE, RING MOD

Amp(44) :BTQ CLEAN, PURE CLEAN, JAZZ CLEAN 1, JAZZ CLEAN 2, CALI CLEAN 1, CALI CLEAN 2, CALI CLEAN 3, CALI CLEAN 4, VOX AC4, VOX AC15TB, VOX AC15, VOX AC30TB, VOX AC30HH, VOX CRUNCH, US BLUES 1, US BLUES 2, US BLUES 3, US BLUES 4, US 2x12 1, US 2x12 2, US 2x12 3, US 2x12 4, UK ROCK 1, UK ROCK 2, UK ROCK 3, UK ROCK 4, BTQ OD, VOX NT15, VOX AC30BM, UK METAL 1, UK METAL 2, UK METAL 3, UK METAL 4, US HIGAIN 1, US HIGAIN 2, US HIGAIN 3, US HIGAIN 4, US METAL 1, US METAL 2, US METAL 3, US METAL 4, BTQ METAL 1, BTQ METAL 2, BTQ METAL 3

Drive (18):TONE DRIVE, BLUE DRIVE, TREBLE BOOST, GOLD DRIVE, TUBE OD, BRIT LEAD, FAT, METAL DIST, ROCK PLANET, TUBE DX, ORANGE DIST, CLASSIC+, GERMANIUM FUZZ, BIG FUZZ, VOX TONE BENDER, OCTA FUZZ, TECHNO FUZZ, CRUSHER

Cabinet (12):TWEED 1x8, TWEED 1x12, TWEED 4x10, BLACK 2x10, BLACK 2x12, VOX AC15, VOX AC30, VOX AD120VTX, UK H30 4x12, UK T75 4x12, US V30 4x12, CUSTOM

Modulation (9):CE CHORUS, MULTI CHORUS, FLANGER, ORG PHASE, TWIN TREM, G4 ROTARY, PITCH SHIFT, FILTRON1 (AUTO), FILTRON2 (MANUAL)

Display (8):ANALOG DELAY 1, ANALOG DELAY 2, ANALOG DELAY 3, ANALOG DELAY 4, ECHO 1, ECHO 2, ECHO 3, ECHO 4

Reverb (3):ROOM, SPRING, HALL

Noise Reduction (1)

Volume(*IG Only)

Effect Type - StompLab IB/IIB

Pedal (9):COMP, EXCITER, FIX WAH or WAH?*IB?FIX WAH, IIB?WAH?, AUTO WAH, BRN OCTAVE, ACOUSTIC, U-VIBE, TONE, RING MOD

Amp (10):VALVE 1, VALVE 2, CLASSIC, SCOOPED, LA STUDIO, GOLD PANEL, JAZZ, STUDIO, AC100, UK MAJOR

Drive (8):TUBE OD, FAT DIST, ORANGE DIST, SHRED DIST, FUZZ, OCTA FUZZ, TECHNO FUZZ, CRUSHER

Cabinet (12):LA 4x10, LA 1x18, METAL 4x10, UK 4x12, UK 4x15, CLASSIC 8x10, MODERN 4x10, STUDIO 1x15, JAZZ 1x15, AC 2x15, COMBI, CUSTOM

Modulation (9):CE CHORUS, MULTI CHORUS, FLANGER, ORG PHASE, TWIN TREM, G4 ROTARY, PITCH SHIFT, FILTRON1 (AUTO), FILTRON2 (MANUAL)

Delay (8):ANALOG DELAY 1, ANALOG DELAY 2, ANALOG DELAY 3, ANALOG DELAY 4, ECHO 1, ECHO 2, ECHO 3, ECHO 4

Reverb (3):ROOM, SPRING, HALL

Noise Reduction (1)

Volume(*IIB Only)

Program Category

StomLab IG / IIG
BALLAD10, JAZZ/FUSION10, POP10, BLUES10, ROCK & ROLL10, ROCK10, HARD ROCK10, METAL10, HARD CORE10, OTHER10, USER20

StompLab IB / IIB
JAZZ/FUSION10, POP110, POP210, ROCK110, ROCK210, HEAVY10, FUNK110, FUNK210, DANCE10, OTHER10, USER20

Technical Specifications

The number of Effect:

• StompLab IG?103

• StompLab IIG?104

• StompLab IB?60

• StompLab IIB?61

• The number of Program:120 (User = 20 / Preset = 100)

• Audio Input:1 (Monaural Standard)

• Audio Output:OUTPUT/PHONES (Stereo Standard)

• Signal processing:A/D conversion: 24-bit / D/A conversion: 24-bit

• Tuner:Measurement Range: A0 - E6

• Calibration Range:A=438 Hz 445 Hz

• Power:AA battery x 4 DC 9V (Option: AC Adapter)

• Battery Life:7.5 hours (Alkaline battery)

• Dimensions (W x D x H):
  StompLab IG / IB = 145 x 125 x 57 / mm, 5.7 x 4.92 x 2.24 / inch
  StompLab IIG / IIB = 207 x 125 x 64 / mm, 8.15 x 4.92 x 2.52 / inch

• Weight:
  StompLab IG / IB = 590 g / 20.8 oz
  StompLab IIG / IIB = 780 g / 1.72 oz

• Included items:AA battery x 4 for verifying proper operation

• Options:AC Adapter
