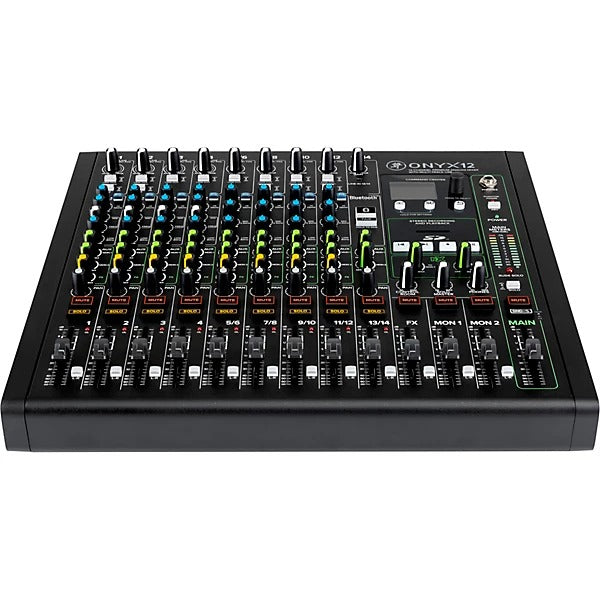

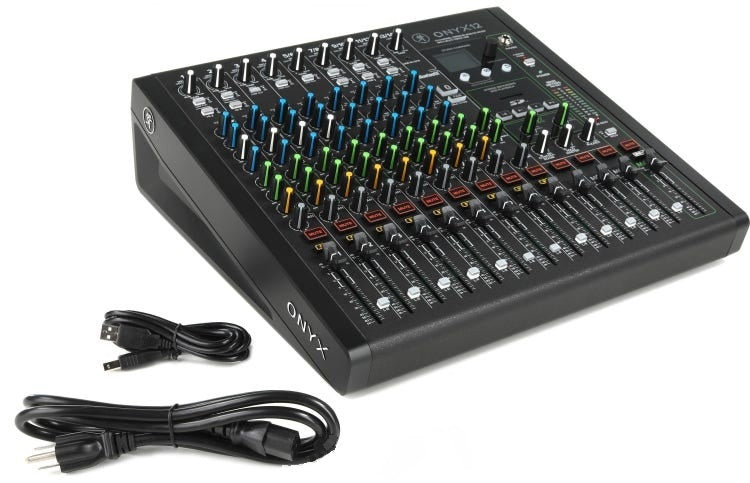

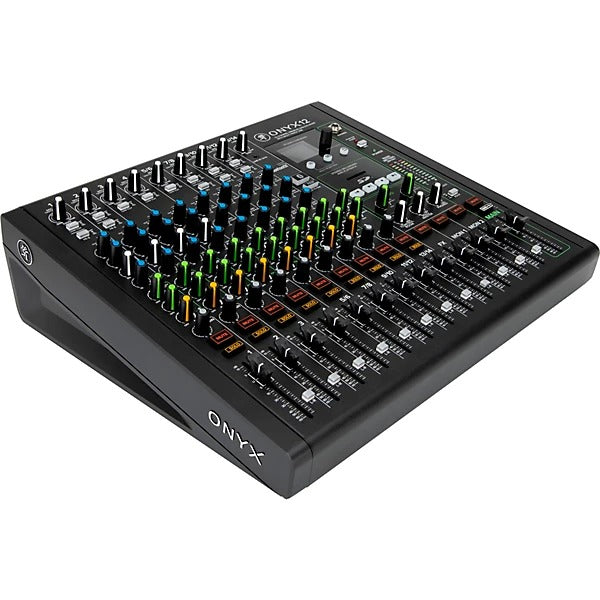

Mackie Onyx12 12-Channel Premium Analog Mixer - With Multi-Track USB and Bluetooth

FEATURES

• Classic Sound, Modern Performance
• Multitrack Recording via USB or SD card, up to 24-bit/96kHz
• Award-Winning Onyx Preamps for Pristine Audio
• Powerful FX Engine with Customizable Presets
• Studio Command Interface with Full-color LCD
• Bluetooth® Streaming

*Includes standard IEC power cable

DESCRIPTION

The Mackie Onyx12 12-channel premium analog mixer with USB is the ultimate compact solution for live audio, home recording and content creation. Featuring 24-bit/96kHz multitrack recording, award-winning high-gain Onyx mic preamps, and an end-to-end ultralow-noise design, the Onyx12 delivers the pristine sound quality that audio professionals demand. Packed with powerful features, including studio-grade DSP effects, British-style Perkins EQ of the 1960s and '70s, an easy-to-read full-color display, and integrated recording and playback from an SD card, the Onyx12 gives you the tools you need to capture inspired performances with stunning fidelity.

The Onyx12 is equipped with eight high-gain, low-noise Onyx mic preamps to provide a clean, transparent signal path for your microphones. Onyx preamps are renowned for their wide frequency response, high headroom, and ability to handle high SPL sources without distortion. With 48V phantom power available on all mic channels, the Onyx12 can power your favorite condenser microphones for studio-quality recordings.

Shape your sound with the Onyx12's studio-grade DSP effects, including reverb, delay, chorus, flanger, pitch shifter, and more. With 100 factory presets and 100 user-editable presets, it's easy to dial in the perfect effect for your mix. Effects parameters are adjustable via the mixer's full-color display, giving you total creative control.

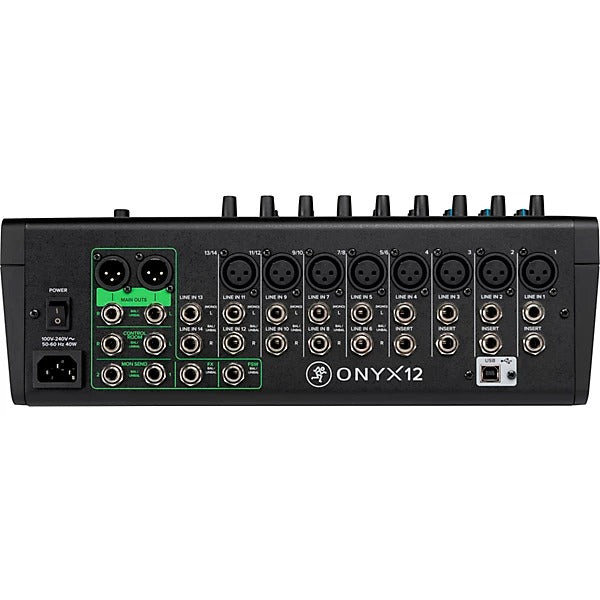

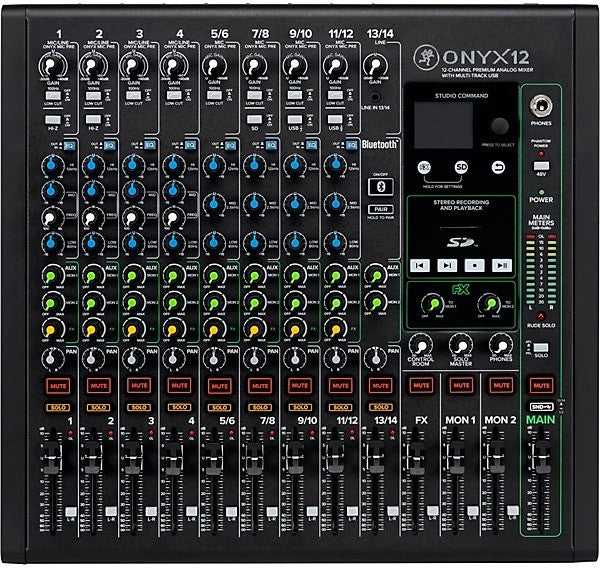

The Onyx12 offers extensive routing capabilities for any mixing need. Each of the 12 input channels features a 3-band Perkins EQ with hard bypass switches, gain control, pan, mute and pre/post fader AUX sends. Channels 1-8 have both XLR mic inputs and 1/4" line inputs, while channels 9-12 feature 1/4" line inputs only. Two AUX sends, control room outputs, studio outputs, and dedicated 2-track inputs and outputs provide flexible signal routing for any mixing application from live sound to studio recording.

Capture your best takes with stunning realism. The Onyx12 offers high-resolution 24-bit/96kHz recording direct to your Mac or PC via USB. Record all 12 input channels plus the main mix simultaneously for maximum flexibility in post-production. Playback audio files directly from your computer through the Onyx12's studio outputs and control room outputs.

SPECIFICATIONS

Type:Analog MixerChannels:12Computer Connectivity:USB, BluetoothA/D Resolution:24-bit/96kHzInputs - Mic Preamps:8 x XLRPhantom Power:YesInputs - Line:14 x 1/4", 1 x 1/8"Outputs - Main:2 x XLR (main), 2 x 1/4" (main), 2 x 1/4" (control room)Send/Return I/O:1 x 1/4" (FX), 2 x 1/4" (mon)Inserts:4 x 1/4"Headphones:1 x 1/4"USB:1 x Type BBluetooth:YesOther I/O:1 x 1/4" (footswitch)EQ Bands:4-band EQEffects:YesStorage:SD card slotPower Source:Standard IEC AC cableHeight:5.4"Width:14.8"Depth:14"Weight:13 lbs.

*Includes standard IEC power cable
