Yamaha DBR12 12" Powered Speaker - Each

FEATURES

• 1,000W Class-D high-efficiency amplifier
• Custom-designed 12" woofer and 1.4" tweeter
• Delivers up to 131dB SPL of full-range sound
• Onboard 2-channel mixer with flexible I/O
• XLR, 1/4", RCA, and 3.5mm inputs
• CH1+2 Mix or CH1 Thru output options
• Lightweight, durable plastic enclosure
• Wedge-shaped design for use as a floor monitor
• M8 rigging points for permanent installation
• Ergonomic handles for easy transport
• Rugged steel grille for driver protection

*Includes standard IEC power cable

DESCRIPTION

The Yamaha DBR12 redefines what’s possible in a portable PA speaker, offering professional-grade performance in a compact, road-ready design. Powered by a robust 1,000W Class-D amplifier and featuring Yamaha’s proprietary DSP, the DBR12 pumps out crystal-clear, full-range audio at volumes reaching 131dB SPL — more than enough to fill mid-size venues, rehearsal spaces, or outdoor gigs with ease.

Engineered with a custom 12" woofer and a 1.4" compression driver, the DBR12 delivers punchy bass, articulate mids, and sparkling highs, all tightly controlled through a precisely tuned waveguide. This balanced response makes it equally suitable for live sound, DJ applications, or spoken word reinforcement.

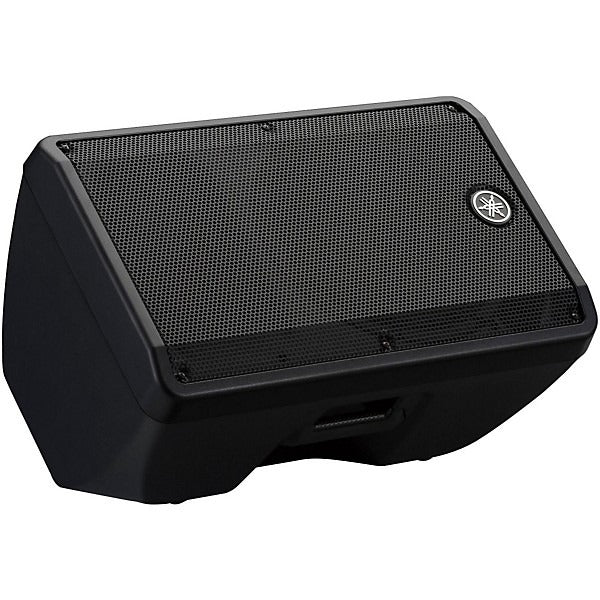

At just under 35 pounds, the DBR12 is incredibly easy to transport and set up. Its lightweight enclosure features a 50-degree wedge angle for monitor use, M8 rigging points for installations, and rugged construction built to withstand the demands of the road. A steel grille adds extra durability while ergonomic handles enhance portability.

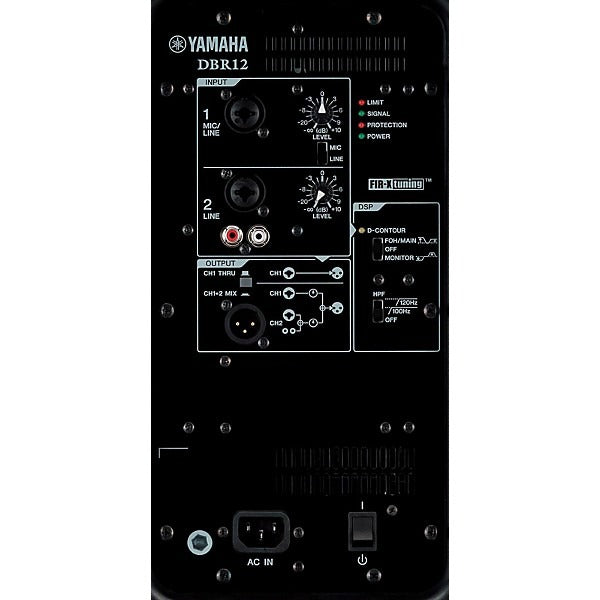

The integrated 2-channel mixer gives you plug-and-play versatility with a variety of sources. From microphones and instruments to laptops and mobile devices, the DBR12’s flexible I/O lets you connect with confidence, mix easily, and get great sound fast.

Whether you’re a solo performer, mobile DJ, or venue operator, the Yamaha DBR12 is a smart, powerful choice that brings pro-level sound wherever you go.

SPECIFICATIONS

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:12" woofer
• HF Driver Size:1.4"
• LF Driver Power Amp:800W
• HF Driver Power Amp:200W
• Total Power:1000W
• Inputs:2 x XLR-1/4" combo, 1 x Dual RCA Stereo
• Outputs:1 x XLR
• Frequency Range:52Hz-20kHz (-10dB)
• Crossover Frequency:2.1kHz
• Maximum Peak SPL:131dB
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Enclosure Material:Plastic
• Mounting Options:Pole Mount with 1.37" socket, Floor Wedge, 3 x M8 Fly Points
• Power Source:Standard IEC AC cable
• Height:23.7"
• Width:14.8"
• Depth:13.7"
• Weight:34.8 lbs.

*Includes standard IEC power cable
