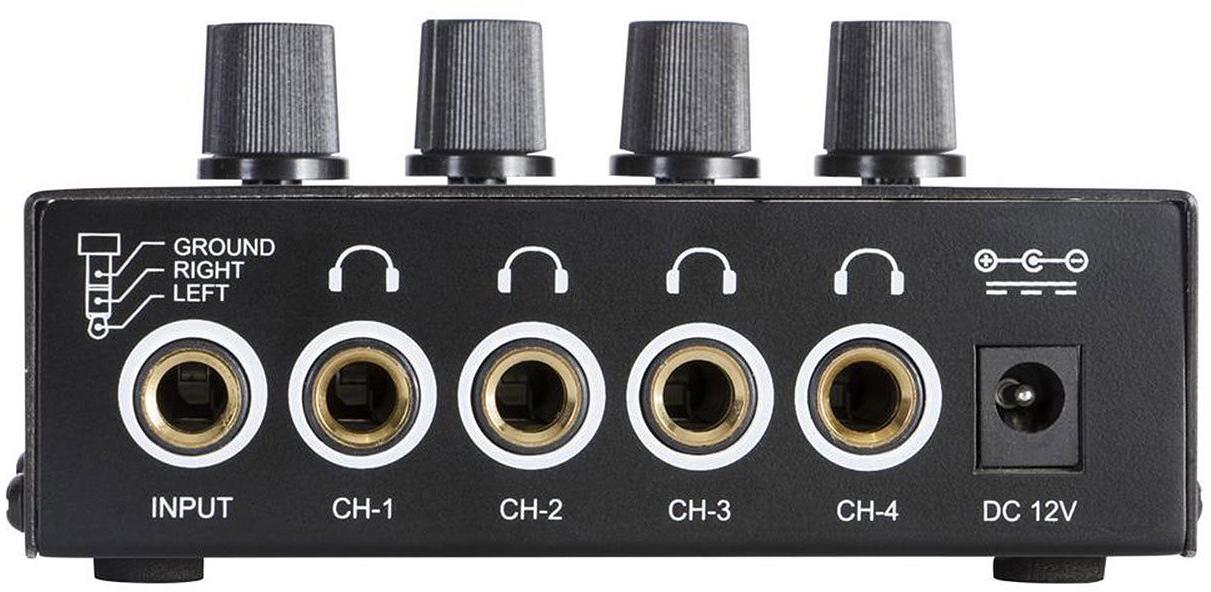

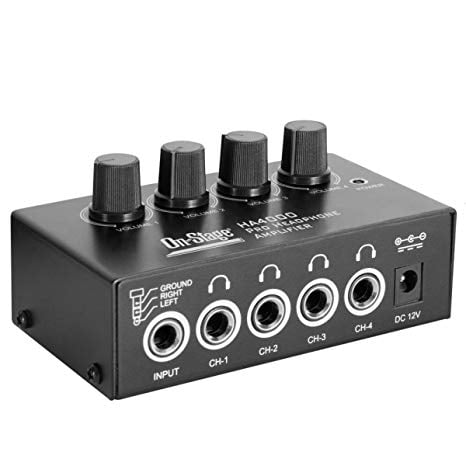

Onstage HA4000 4-Channel Headphone Amp

FEATURES

• Allows up to up to four people to listen to a recorded take at the same time
• Individually adjustable volume for each output
• Also great for use during playing or recording, allowing listeners to hear the main mix
• Output Connector: 1/4" TRS Stereo
• Input Impedance: 1000KO (unbalanced)
• Output Impedance: Minimum 10O each channel
• Max Gain: 20dB per channel
• Power Supply: 12-18v DC adapter (included)

*Includes 12-18V DC power supply

DESCRIPTION

The HA4000 from On-Stage is a four-channel headphone amplifier, allowing up to four people to personally monitor an audio signal at the same time, all while individually setting their own volume levels.

High quality sound is maintained even at full volume. With 20 dB of gain available per channel, the unit is suitable for use in playback or recording scenarios. Routing audio to the unit is accomplished via one 1/4" stereo input jack, and from there, the signal is routed to channels, each one boasting its own volume up and 1/4" headphone output jack.

SPECIFICATIONS

• Application: Recording, audio playback
• Input Connector: 1/4" TRS Stereo
• Input Impedance: 1000KO (unbalanced)
• Max Gain: 20dB per channel
• Max Output Level: +22dB
• Output Connector: 1/4" TRS Stereo
• Output Impedance: Minimum 10O each channel
• Power Supply: 12V - 18V DC adapter (included)
• Signal to Noise Ratio: >98dB

*Includes 12-18V DC power supply
