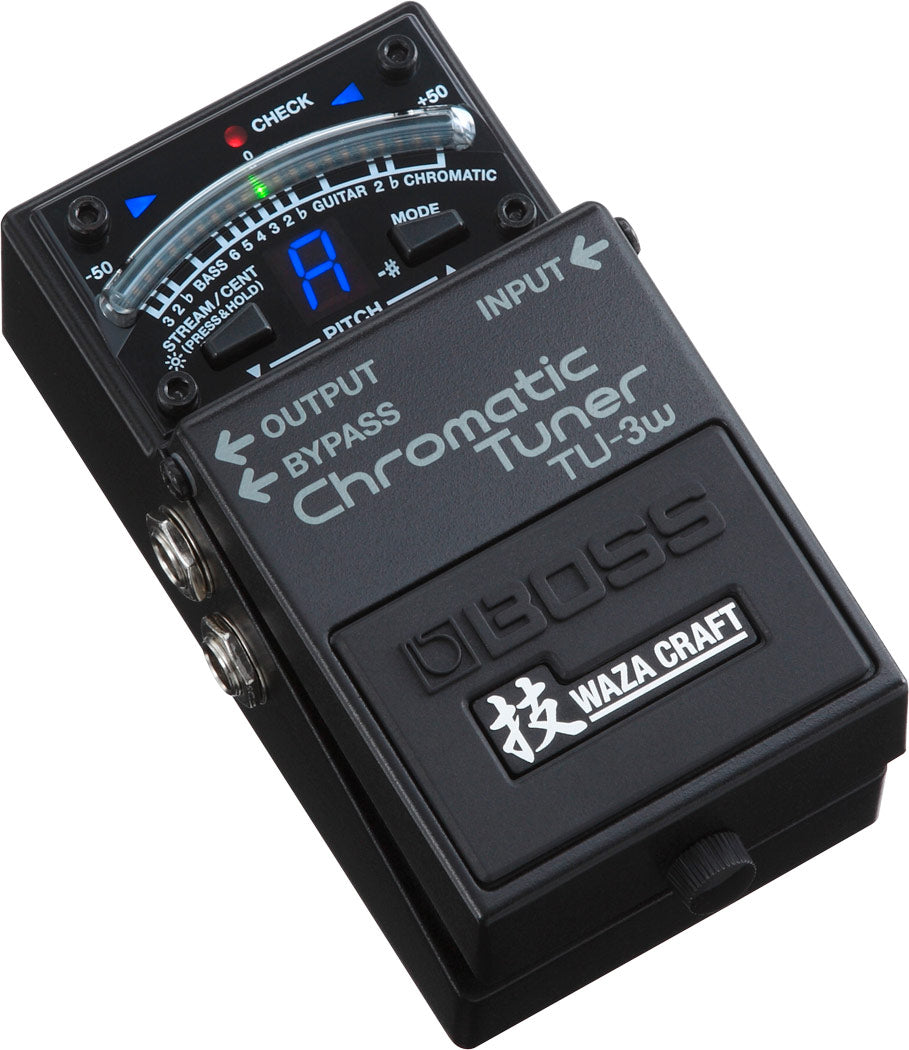

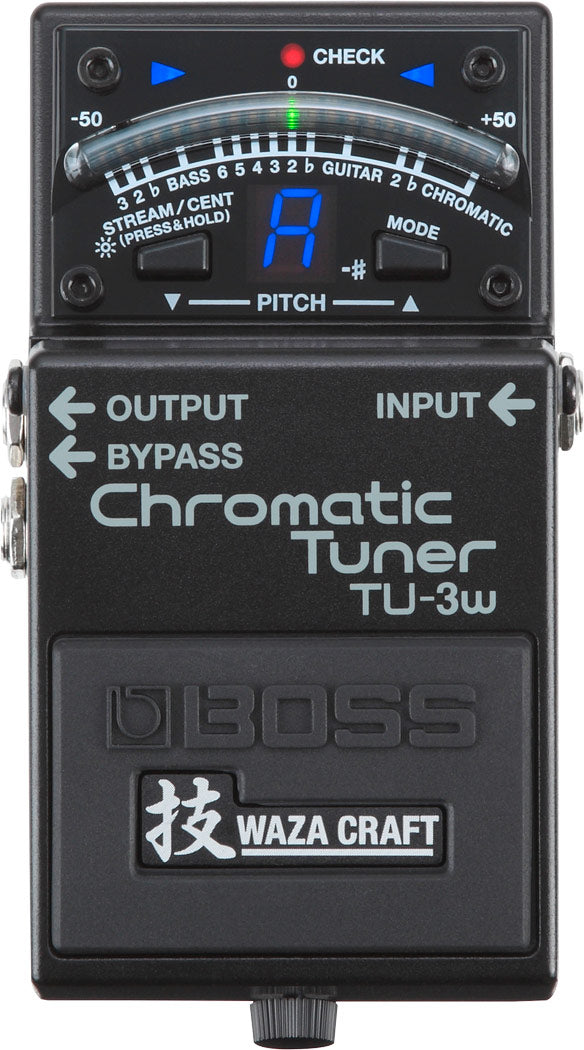

Boss TU3W Waza Chromatic Tuner

FEATURES

• The world’s leading stompbox tuner, enhanced with Waza innovation and craftsmanship
• Superior tuning and premium signal buffer in one pedal
• Tuning functions are identical to the industry-standard TU-3
• Refined audio circuitry for exceptionally pure signal pass-through
• Buffer can be turned off for true-bypass operation
• BOSS five-year warranty

*Includes 9V Battery *Boss PSA-120S sold separately

DESCRIPTION

With the TU-3W, BOSS brings Waza Craft mojo to the world’s leading stompbox tuner!

At its core, the TU-3W provides rock-solid tuning equivalent to the industry-standard TU-3. In true Waza tradition, the pedal’s benchmark functionality is further enhanced with BOSS skill and craftsmanship. Pure, uncolored signal transfer is essential for a tuner, and the TU-3W features redesigned circuitry with selectable buffered or true-bypass operation and the most transparent audio pass-through possible.

Packing high-end performance for discriminating players, the TU-3W delivers a premium pedal experience only available from BOSS!

SPECIFICATIONS

• Tuning Range: CO (16.35 Hz)--C8 (4,186 Hz)
• Reference Pitch: A4 = 436--445 Hz (1 Hz step)
• Tuning Accuracy: +/- 1 cent
• Modes: Chromatic
• Chromatic flat x2
• Guitar
• Guitar flat x2
• Bass
• Bass flat x3

Display Mode:

• Cent mode
• Stream mode

Power Supply:

• Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
• AC adapter (sold separately)

Bypass: Buffered bypass or True bypassControls:

• Pedal switch
• OUTPUT switch (BUF/THRU SW)
• MODE button
• STREAM/CENT button

Nominal Input Level: -20 dBuInput Impedance: 1 M ohmNominal Output Level: -20 dBuOutput Impedance: 1 k ohmRecommended Load Impedance: 10 k ohms or greaterIndicator: CHECK indicator (Serves also as battery check indicator)Connectors

• INPUT jack
• OUTPUT jack
• DC IN jack
• DC OUT jack

*Includes 9V Battery *Boss PSA-120S sold separately
