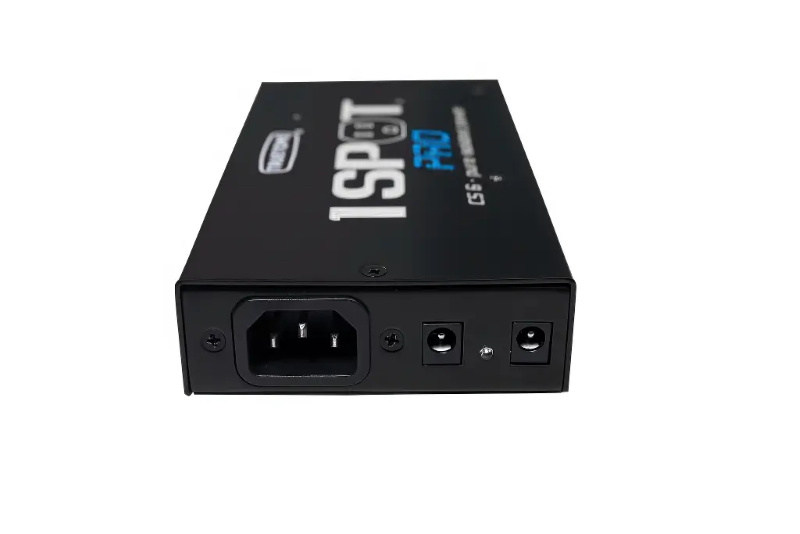

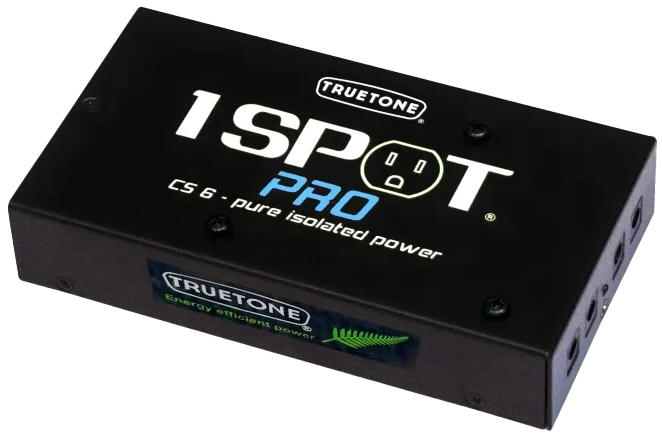

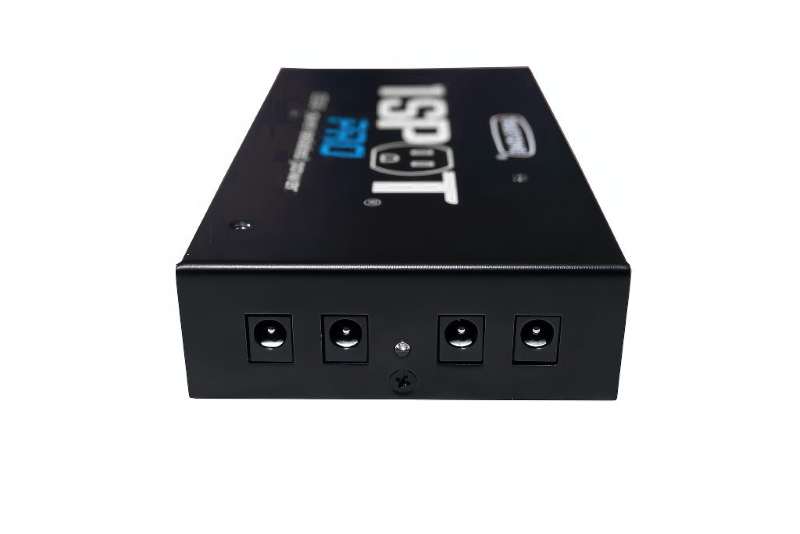

Truetone 1 SPOT PRO CS6 Multi Guitar Pedal Power Supply

CS6

$169.99

In Stock!

Free Shipping on Most Orders Over $99 Lower 48* USA

30-day guarantee and hassle-free returns

The CS6 is designed from the ground up for under-board mounting on Pedaltrain® (and other) pedalboards. Its low-profile housing attaches directly to the rails — no separate mounting bracket needed. Six isolated outputs, worldwide voltage, and complete cable management in one tidy package.

  • 6 isolated, filtered outputs for small to mid-sized boards
  • Low-profile housing designed for Pedaltrain® under-board mounting
  • Attaches directly to Pedaltrain® rails — no additional hardware needed
  • Includes drill template for custom mounting
  • Worldwide input voltage: 100–240Vac, no transformer needed
  • Cables and converter plugs included

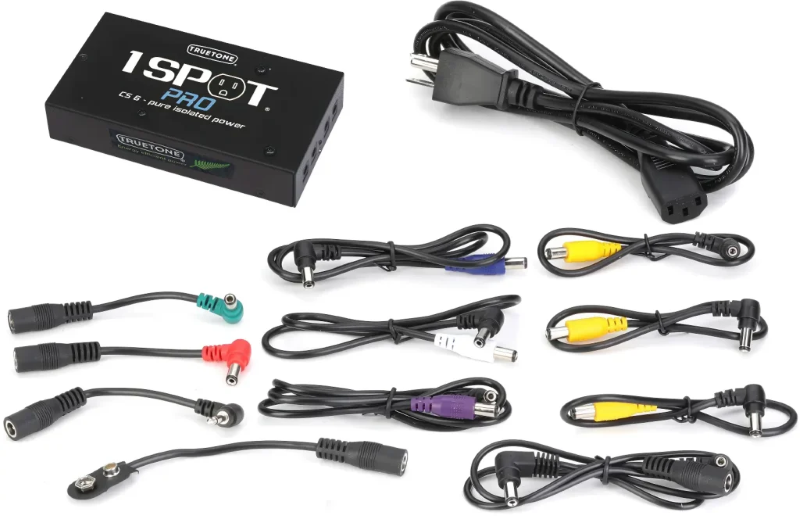

Included in the package are:

Truetone 1 SPOT PRO CS6 Multi Guitar Pedal Power Supply

Apply for extended financing through Synchrony with George's Music and start playing now.

Apply here

Learn more

Most orders placed by 3pm EST ship same day!

1-day delivery for most PA and FL orders!

Truetone 1 SPOT PRO CS6 Multi Guitar Pedal Power Supply

Truetone 1 SPOT PRO CS6 Multi Guitar Pedal Power Supply

$169.99

$169.99

FEATURES

  • 6 isolated, filtered outputs for small to mid-sized boards
  • Low-profile housing designed for Pedaltrain® under-board mounting
  • Attaches directly to Pedaltrain® rails — no additional hardware needed
  • Includes drill template for custom mounting
  • Worldwide input voltage: 100–240Vac, no transformer needed
  • Cables and converter plugs included

DESCRIPTION

The CS6 is designed from the ground up for under-board mounting on Pedaltrain® (and other) pedalboards. Its low-profile housing attaches directly to the rails — no separate mounting bracket needed. Six isolated outputs, worldwide voltage, and complete cable management in one tidy package.

SPECIFICATIONS

Dimensions: 88 x 160 x 31mm (3.46 x 6.30 x 1.22")Weight: 590 grams (1.3 lbs.), power supply onlyInput Voltage: 100–240Vac (worldwide)Total Outputs: 6 independently isolatedOutputs 1–2: 9Vdc, 500mA eachOutputs 3–4: 9Vdc/18Vdc switchable, 100mA eachOutputs 5–6: 9Vdc/12Vdc switchable, 200mA eachMounting: Direct attachment to Pedaltrain® rails via included drill templateIncluded: DC cables, converter plugs, drill templateWarranty: 5-Year LimitedCables and converter plugs included

Watch Now
×

Frequently Asked Questions

Specs & Support

Dimensions: 88 x 160 x 31mm (3.46 x 6.30 x 1.22")Weight: 590 grams (1.3 lbs.), power supply onlyInput Voltage: 100–240Vac (worldwide)Total Outputs: 6 independently isolatedOutputs 1–2: 9Vdc, 500mA eachOutputs 3–4: 9Vdc/18Vdc switchable, 100mA eachOutputs 5–6: 9Vdc/12Vdc switchable, 200mA eachMounting: Direct attachment to Pedaltrain® rails via included drill templateIncluded: DC cables, converter plugs, drill templateWarranty: 5-Year LimitedCables and converter plugs included
