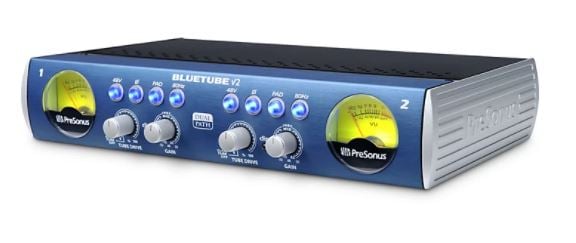

PreSonus BlueTube DP V2 Microphone / Instrument Preamp
The new BLUETUBE DP two channel microphone/instrument preamplifier with Dual Path technology delivers the best of both worlds offering a solid state preamplifier stage and a tube preamplifier stage in each channel. This new Dual Path feature delivers the most flexible preamplifier in its price range by delivering both fat warm tube tone or invisible solid state transparency. The BLUETUBE DP replaces the original award-winning BLUETUBE as PreSonus' most affordable two-channel microphone/instrument preamplifier.

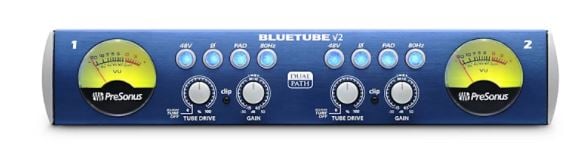

Each channel of the BLUETUBE DP includes a -20dB pad, polarity reverse, 80Hz filter, and +48v phantom power. Front panel controls include solid state GAIN control and switchable on/off TUBE DRIVE. When the TUBE DRIVE is clicked off, the tube preamplifier stage is bypassed delivering ultra-quiet and transparent preamplification. The front panel also includes illuminated analog VU meters for each channel for easy visual monitoring.
The BLUETUBE DP's inputs are professional-quality Neutrik Combo connectors for inputting both XLR and 1/4" TS sources. Outputs include both XLR and TS jacks allowing for ultimate flexibility.
The PreSonus BLUETUBE Dual Path is great for enhancing all types of microphones including condensors, dynamics and ribbons, as well as instruments including keyboards, acoustic and electric guitars and bass. The BLUETUBE DP is the perfect front-end preamplifier for any project studio delivering a wide range of sounds and tonality all at an amazingly affordable price.
FEATURES
Stereo Dual Path Mic/Instrument Preamp Using 12AX7 Tube
High Headroom, Class A Gain Stage
XLR and ¼ High-Z Neutrik® Input Combo Connectors
Balanced XLR and ¼ TS Neutrik® Output Connectors
20dB Pad/ Polarity Reversal/ 80Hz Filter on Each Channel
Two Illuminated Analog VU Meters
Great as a DI for Bass and Guitar
Input
Connector Type
Neutrik™ Combo
XLR Impedance
1.3K Ohms
Hi-Z, 1/4"
1 Meg Ohms
Output
Connector Type
XLR and 1/4" TS
Impedance 51 Ohms
Panel Controls
Gain
0dB to +54dB
Tube Drive
0% to 100%
Phase Reversal
-20dB Pad
Phantom Power
Performance
THD Noise (Unweighted) Solid State
< 0.005%
THD Noise (Unweighted) Tube stage 0.01% to 30%
Signal To Noise
>95dB
Power Supply Rejection
>98dB
Meters
Analog VU
-2odBu to +6dBu
Clip Indicator +22dBu
Physical
Weight
4lbs
Dimensions
8" x 5" x 1.75"
Mounting
Universal rack tray insert
Power Supply
Type
Linear
Input
16VAC / 1000mA
Power 16 Watts
Transformer
External
PreSonus BlueTube DP V2 Microphone / Instrument Preamp
2777400101
The new BLUETUBE DP two channel microphone/instrument preamplifier with Dual Path technology delivers the best of both worlds offering a solid state preamplifier stage and a tube preamplifier stage in each channel. This new Dual Path feature delivers the most flexible preamplifier in its price range by delivering both fat warm tube tone or invisible solid state transparency. The BLUETUBE DP replaces the original award-winning BLUETUBE as PreSonus' most affordable two-channel microphone/instrument preamplifier.
Each channel of the BLUETUBE DP includes a -20dB pad, polarity reverse, 80Hz filter, and +48v phantom power. Front panel controls include solid state GAIN control and switchable on/off TUBE DRIVE. When the TUBE DRIVE is clicked off, the tube preamplifier stage is bypassed delivering ultra-quiet and transparent preamplification. The front panel also includes illuminated analog VU meters for each channel for easy visual monitoring.
The BLUETUBE DP's inputs are professional-quality Neutrik Combo connectors for inputting both XLR and 1/4" TS sources. Outputs include both XLR and TS jacks allowing for ultimate flexibility.
The PreSonus BLUETUBE Dual Path is great for enhancing all types of microphones including condensors, dynamics and ribbons, as well as instruments including keyboards, acoustic and electric guitars and bass. The BLUETUBE DP is the perfect front-end preamplifier for any project studio delivering a wide range of sounds and tonality all at an amazingly affordable price.
FEATURES
Stereo Dual Path Mic/Instrument Preamp Using 12AX7 Tube
High Headroom, Class A Gain Stage
XLR and ¼ High-Z Neutrik® Input Combo Connectors
Balanced XLR and ¼ TS Neutrik® Output Connectors
20dB Pad/ Polarity Reversal/ 80Hz Filter on Each Channel
Two Illuminated Analog VU Meters
Great as a DI for Bass and Guitar
Input
Connector Type
Neutrik™ Combo
XLR Impedance
1.3K Ohms
Hi-Z, 1/4"
1 Meg Ohms
Output
Connector Type
XLR and 1/4" TS
Impedance 51 Ohms
Panel Controls
Gain
0dB to +54dB
Tube Drive
0% to 100%
Phase Reversal
-20dB Pad
Phantom Power
Performance
THD Noise (Unweighted) Solid State
< 0.005%
THD Noise (Unweighted) Tube stage 0.01% to 30%
Signal To Noise
>95dB
Power Supply Rejection
>98dB
Meters
Analog VU
-2odBu to +6dBu
Clip Indicator +22dBu
Physical
Weight
4lbs
Dimensions
8" x 5" x 1.75"
Mounting
Universal rack tray insert
Power Supply
Type
Linear
Input
16VAC / 1000mA
Power 16 Watts
Transformer
External
Included in the package are:
PreSonus BlueTube DP V2 Microphone / Instrument Preamp
